OUR EXPERTISE

ABOUT US

Aqueous Valves Solution Co., Limited (AQV), an ISO9001-2008 certified company, committed to manufacturing valves, fittings & related products for water works, water treatment and HVAC applications.AQV Valve established 1991, consisting of Suzhou AQV Valves Co, Ltd, Hebei AQV Valves Co., Ltd. within our own factory and foundry, we have blast furnace, precoated sand mould, shot blasting machine, machining center and electrostatic epoxy resin coating lin e, g iven alI of this, our products quality always under good control.

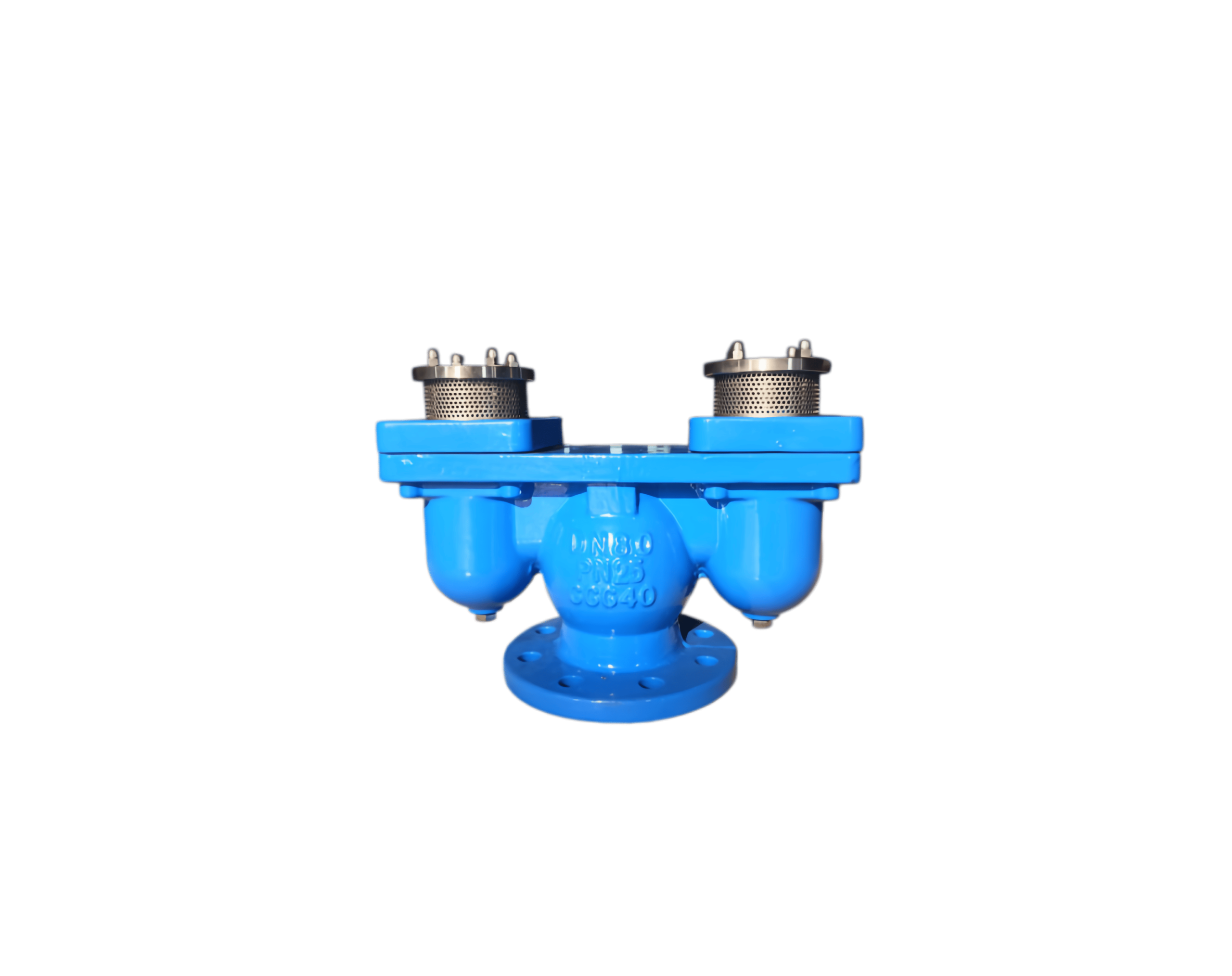

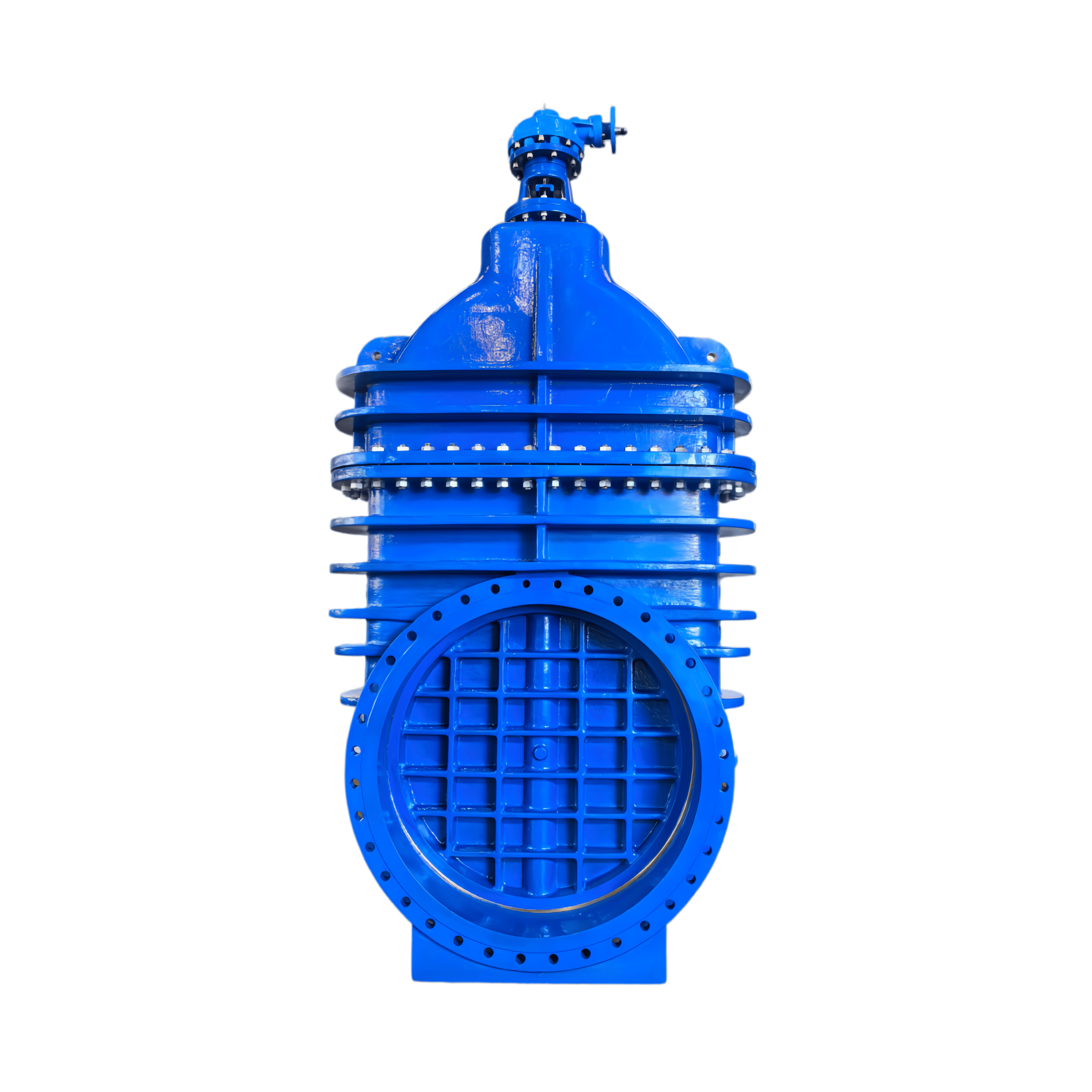

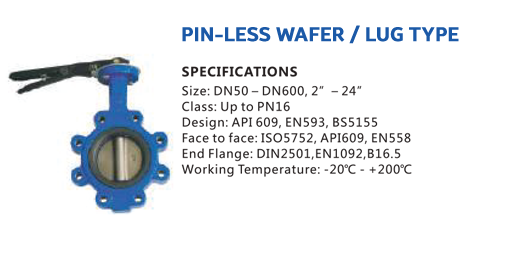

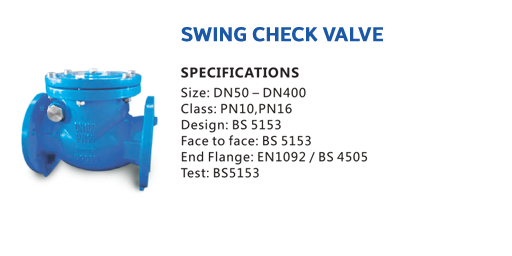

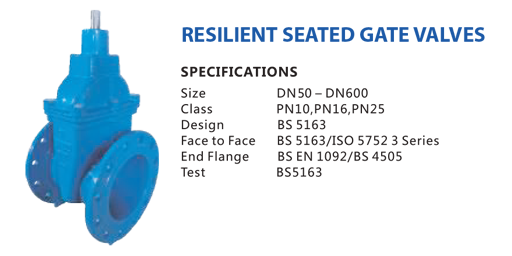

AQV mainly produce Iron Resilient Seated Gate Valves (BS, DIN F4, F5, AWWA), Metal Seal Gate Valves, Butterfly Valves (Double eccentric dou ble flanged, Concentric double flanged, Wafer type, Lug type), Check Valves (Swing type, Double Door Wafer), Y Strainers, Air Release Valve, etc.

Our philosophy is to offer the best possible products at affordable prices. Welcome to visit our factory befo re cooperating. AQV is trying to satisfy you in all respects.

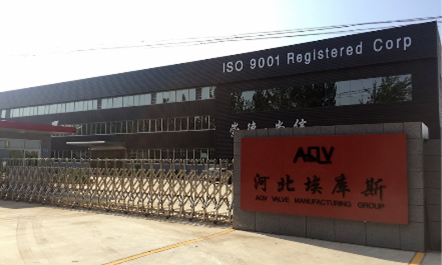

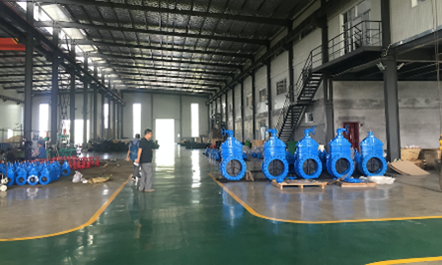

Our Factory

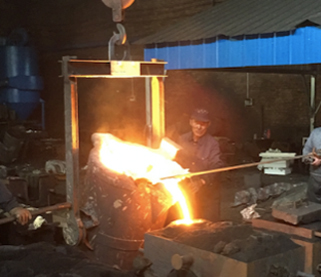

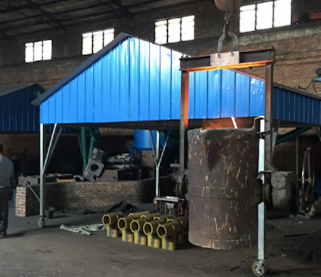

Our Foundry

PRODUCTIVE PROCESS

AQV insist on using WRAS APROVED powder

CASTING PREPARATION
Metal burrs and sharp edges of casting are cleaned up using grinding machines. Oil/Grease etc is cleaned up using special cleaning chemicals to ensure that the casting is free of all impurities and ready to accept coating. There are then sandblasted to create a roug h texture on the surface of the casting to help provide a strong mechanical bond with the coating. Castings are visually inspected to ensure cleanliness and roug hness of the surface.
APPLICATION OF POWDER COATING
Castings are then put in an oven to be heated to + 280 Deg C. Using electrostatic spray guns, the hot castings (min. temperature 210 Deg C) are coated with Epoxy Resin Powder inside and outside creating a film of no less than 250 microns all round. After the casti ng s are comp letely coated, these are then allowed to cool down resulting in formation of a solid layer of Epoxy Film on the entire valve body both interior and exterior.

QUALITY ASSURANCE
Inspecting cured valve body to ensure ‘pin hole’ has not occurred. Coating thickness in all round should be verified as min. 250 microns throug h a thickness meter. Using slide caliper to measure flange hole dimension, thickness of flange etc, insure all fig ures conform to relevant standards.
HYDRO TEST
Separately doin g shelI and seal test strict I y in acco rd ance to relative stand ards. Defective products will be reworked or scrapped.
PACKING
The valves are separated in bubble bag before packing horizontally or vertically into the wooden crate. Each valve will be isolated with a piece of cardboard.

Products

Accessories

Type / Category

LMF11
General Applications

LMF11B
Battery Operated

LMF12
Heat Meter (BTU)

LMF13
Sanitary Type

LMF14
Insertion Type

LMF14B
Insertion Type (Battery Operated)

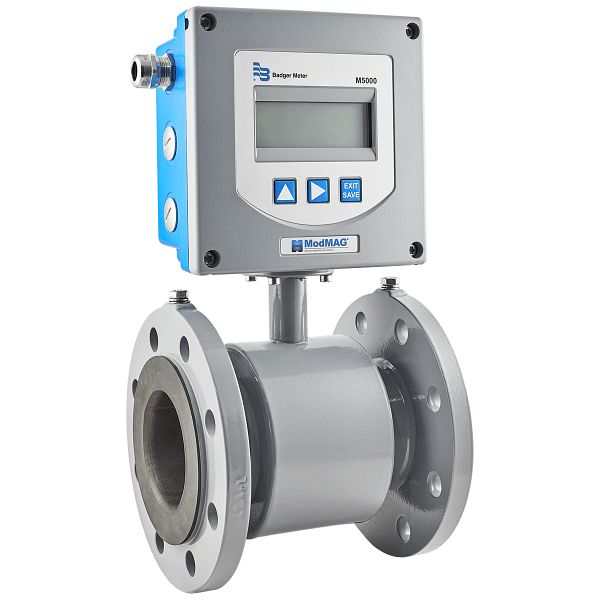

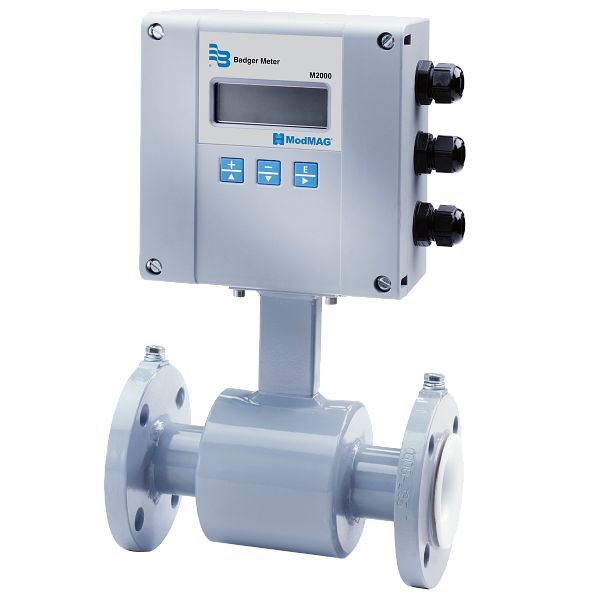

Product Description

LMF series of electromagnetic flowmeter SMD devices and surface mount (SMT) technology, circuit reliability, low power consumption, and the use of 32-bit embedded microprocessor, fast computing, high precision, low frequency rectangular wave excitation, The stability of the measurement. All digital processing, anti-interference ability, reliable measurement, high precision.

Ultra-low power EMI switching power supply, the use of a wide range of power supply voltage changes, EMC performance. Built-in three integrators, respectively, for positive cumulative, inverse cumulative and the difference calculation. With the average flow of automatic computing function, easy to calibrate the instrument.

At the same time also has a small signal cut off the function, the user can set the lower limit of the display panel and the lower limit of the flow, thus removing the interference of small signal flow. In order to enhance the safety, the flow meter is also equipped with a password latch function. After power meter, if you need to set parameters, you must enter the advanced password to set the parameters to prevent unauthorized personnel to change the instrument parameters.

Even if incident suddenly power failure, the flow meter operation results and user settings will not disappear, EEPROM can protect the set parameters and cumulative value.

More Info …

BULK WATER METER WPD / WPHD

Woltman meter with impeller axis arranged in parallel to the flow direction

The bulk water meter WPD / WPHD is used to record high flows in drinking water distribution and in industry, with low pressure loss and a predominantly constant flow profile at the same time.
The meter is equipped with a 6-roller dry dial register (IP68) and a modulator disc. This enables electronic, reaction-free scanning and is the basis for remote reading of the meter data via radio with LoRaWAN^® or wM-Bus. A combined M-Bus / pulse module is also possible.
A mechanical pulser can also be connected in parallel.

Download Datasheet

ULTRASONIC APARTMENT / DOMESTIC WATER METER

The IUWS ultrasonic water meter guarantees reliable recording of the meter data for individual consumption billing in the residential or domestic water sector.

The IUWS is equipped with a 9-digit LCD display. The integrated radio interface is preset at the factory to wireless M-Bus (OMS) or LoRaWAN^®. If required, this can also be changed at a later date. All variants are approved for any installation and are therefore also available in the usual lengths for riser and downpipe installation. A head-down mounting is also possible. All materials, which are used in the drinking water section, comply with the required standards, guidelines and the
current German drinking water approval (other country-specific drinking water approvals on request).

Download Datasheet

DIRT FILTER FOR BULK WATER METERS

In cases where difficult water quality is expected, ZENNER provides two different types of filters for improving the water quality.

Large suspended particles and fibrous contamination can disturb the measurement behavior of a bulk water meter and possibly damage the measuring insert.
The dirt filter can filter particles up to 4 or 5 mm out of the water and reliably protects the following measuring device.

Download Datasheet

State of the art antenna designed for underground use, combined with our 4G modem will ensure you have the best chance at receiving communications from your Data Logger.

Increase communication up time
Date in one place with PrimeWeb
Easy to use Android app allows simple set-up of the XiLog4G
Extend in field use from 5 to 10-15 years – reducing costs and manpower

Download Datasheet

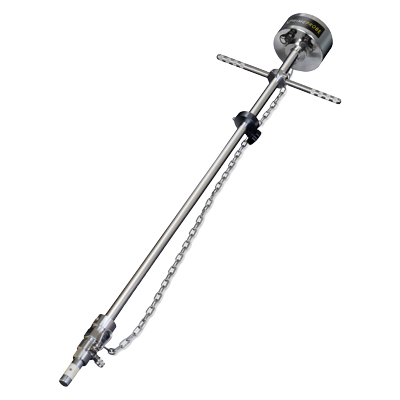

PrimeProbe is a bi-directional, insertion, full bore, electromagnetic flowmeter for permanent or portable use.

Variable length insertion probes
Measures a wide range of flow rates
Battery life of up to 10 years
Operates at up to 25 bar
Flexible data logging

Download Datasheet

PrimeFlo-T is a hand-held correlation transit-time ultrasonic flowmeter that utilises dual DSP technology.

Ultrasonic meter for flow surveys
Measures flow on all common pipes
Non-invasive sensors
Integral data logger
Survey application – 24 hour battery life

Download Datasheet
